Internal Halyard Winch Aluminum Flagpoles
| 40ft (2) Piece Wind Speed 110 Mph 8 Butt Dia. x .156 Wall Thickness Internal Halyard Winch Aluminum Flagpole
40ft (2) Piece Wind Speed 110 Mph 8 Butt Dia. x .156 Wall Thickness Internal Halyard Winch Aluminum Flagpole
Item# IW408156
Regular price:
$5,494.95
Sale price:
$
5,294.95
Finish:
Natural Satin (Standard) $00.00
Clear Anodized (+$1004.00)
Dark Bronze Andz (+$1004.00)
Black Andz** (+$104.00)
White PP* (+$1049.00)
Sparkle Silver PP* (+$1049.00)
Gray PP* (+$1049.00)
Dark Bronze PP* (+$1049.00)
Black PP* (+$1049.00)
Dark Green PP* (+$1049.00)
Mount:
Ground Sleeve (Standard) $00.00
Shoe Base w/Anchor Bolts (+$450.00)
Counter Balanced w/Support Channels (+$3600.00)
Flag:
No Flag ($00.00)
Add 8'x12' Embroidered Nylon American Flag. Made in the USA. (+ $218.95)
Hooks:
Fly One Flag (Standard) ($00.00)
Add Second 5'x8' Flag Arrangement (+ $109.95)
Light:
No Light (+ $00.00)
80 Watt Above Ground Hard Wired Light Kit. Made in the USA. (+ $895.95)
Two Led Beacon Light Kit. Made in the USA. (+ $3995.95
Quad Led Beacon Light Kit. Made in the USA. (+ $6295.95)
Eagle:
No Eagle (+ $00.00)
Gold (Large Size) Eagle. Made in the USA. (+ $149.95)
Natural (Large Size) Eagle. Made in the USA. (+ $159.95)
Pewter (Large Size) Eagle. Made in the USA. (+ $169.95)
Qty:
Standard* "Natural Satin" finish is 2 to 3 weeks for delivery!
All Hardware & Ground Sleeve Included!
Custom Finishes; Anodized & VS. Powder Paint
Material: Material: 100% 6063-T6 Solid Aluminum Tubing
Standard Finish: Natural Satin.
Custom Finish: Main hardware painted to match.
Overall Length: 44ft
Exposed Height: 40ft
Sections: 2
Top Diameter: 3 1/2"
Butt Diameter: 8"
Wall Thickness: .156
Flagpole Weight: 308 lbs
Max Unflagged Wind Speed: 171 mph
Max Flagged Wind Speed: 107 mph
Standard Flag Size: 8'x12' (Flag Sold Separately)
Cast Aluminum Revolving Truck Assembly With-
-S/S Bearing Concealed inside a Cylindrical Hood.
8" Anodized Gold Ball Finial.
S/S Aircraft Cable Halyard.
8'x12' Flag Arrangement.
Qty (2) Stainless Steel Snap Hooks.
Qty (3) Stainless Steel Quick Links.
Qty (1) Beaded Retainer Ring.
Qty (1) Plastic Covered Counterweight.
Internal Winch With Removable Hand Crank. (Image may vary)
Machine Spun Aluminum Flash Collar.

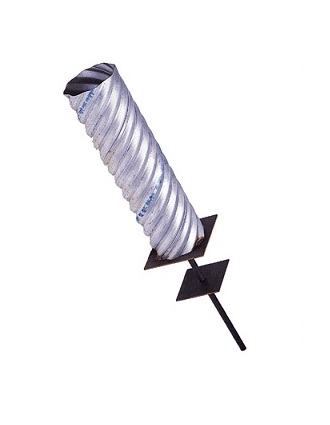

16 Gauge Galvanized Corrugated Ground Sleeve.
Complete Installation Instructions.
Installation Tech Support.
Warranty: Lifetime Shaft Warranty (Restrictions may apply) 1 Year Hardware.
All Commercial Flagpoles Ship LTL Freight, Common Carrier
Origin: MADE IN THE USA.
*Adding a Shoe Base or Tilt Base Mount will reduce wind loads up to 20%
Installation Information
Ground Sleeve (Standard) Shoe Base (Optional)
