30ft COMMERCIAL 1 PIECE VERTICAL WALL/MOUNT FLAGPOLE 6 Butt / Wall Thick .188 WA-9 Brackets
Our 30ft Commercial Vertical Wall Mount Tapered Flagpole is made out of 100% 6063-T6 Solid Aluminum Tubing with Uniform Conical Taper. Beautiful directional sanded "Satin" ground finish!
Lead time on all WA-9 Brackets Flagpoles are 12 to 18 weeks.
For expeditious purposes please see WA-1 Brackets for faster lead times.
All Hardware & Bracket Included!
Custom Finishes; Anodized & VS. Powder Paint
Overall Length: 30ft
Exposed Height: 30ft
Top Diameter: 3 1/2"
Butt Diameter: 6"
Wall Thickness: .188
Flagpole Weight: 125 lbs
Cast Aluminum Revolving Truck Pulley.
Anodized Gold Ball Finial.

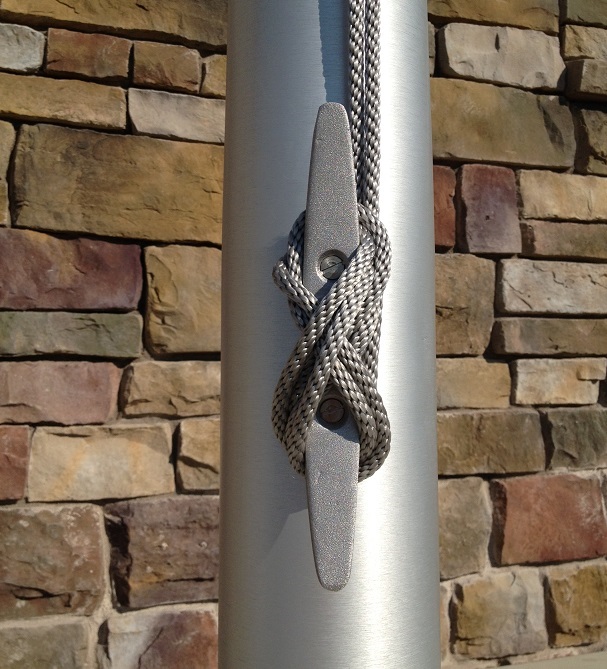

9" Cast Aluminum Cleat W/Mounting Screws.
5/16" Braided Polypropylene Halyard.
2 Chrome Plated Bronze Snaphooks.
WA-1 Mounting Bracket
Wall Anchorage (Not Included)
Complete Installation Instructions.
Installation Tech Support.
Optional Features:
Double Halyard System:
Locking Cleat Box:
Donwnload Drawing
Recommended Anchorage:
3/4" 10 NC x 18" Long Full Threaded Stainless Steel Studbolts
with 14" x 1 1/4" SCH 10 Pipe Sleeves. (Not Included or Available).
Lead time on all WA-9 Brackets Flagpoles are 12 to 18 weeks.
For expeditious purposes please see WA-1 Brackets for faster lead times.
Custom Finishes; Anodized & VS. Powder Paint
Custom Finishes; Anodized & VS. Powder Paint
Optional Features:
Double Halyard System:
Locking Cleat Box:
Donwnload Drawing
Recommended Anchorage:
3/4" 10 NC x 18" Long Full Threaded Stainless Steel Studbolts
with 14" x 1 1/4" SCH 10 Pipe Sleeves. (Not Included or Available).
